Features

This industrial Ethernet switch is a small form factor and efficient Industrial Ethernet solution with integrated serial server or Ethernet card expandibility.

  • Compact Chassis with Full Management

  • Base Unit with 2 x GigE SFP* Ports + 6 x 10/100Base-T

  • Optional Expansion Card with 6 10/100Base-T, 6 100FX or 4 Serial Channels

  • Ethernet Rate Limiting, VLAN, QoS

  • Built-In Power/Temperature Sensors

  • Industrial Hardened & IEC 61850-3, IEEE 1613 & NEMA TS-2 Compliant

  • Supports MicroLok® Railroad Applications*

  • Member of JumboSwitch Product Family

*MicroLok® is a trademark for ANSALDO STS USA, INC.

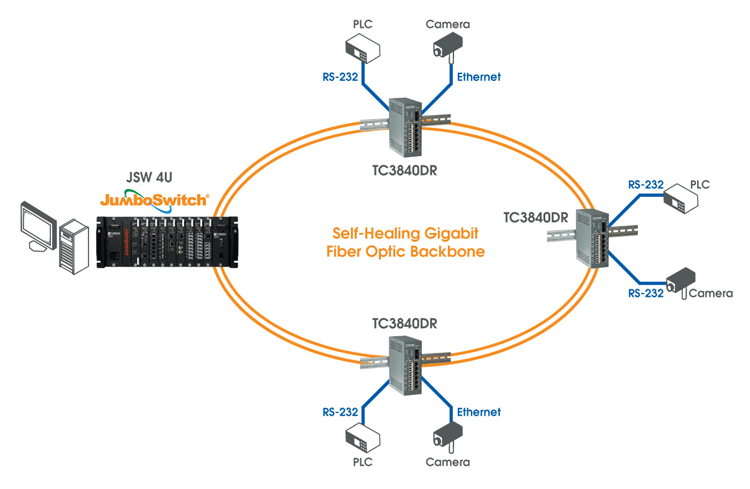

The JumboSwitch-DR DIN Rail Ethernet Switch is a compact, efficient Industrial Ethernet switch solution with full JumboSwitch network compatibility and integrated Serial Server or Ethernet card expandability. It is compatible with all JumboSwitch product family chassis, management software, features and options, and guarantees maximum reliability and performance for industrial automation and mission critical redundant ring network applications.

Want more info? Contact Us

Specifications

Data Rates

  1. RJ45 10/100 Mbps

  2. SFP 1000 Mbps

Connection Capacity

  1. Base (Ethernet)

  2. RJ45 6 Ports

  3. SFP 2 Ports

  4. Expansion (Ethernet)

  5. TC3841-2DR 6x10/100Base-T

  6. TC3842-3DR 6x100FX (SFP)

  7. Expansion (Serial-RS232/422/485)

  8. TC3847-1DR 8 Ports (RJ11)

  9. (NOTE: Supports maximum of 4 channels of RS232 or RS422 or RS485 or Mix)

Optical

  1. Transmitter LASER

  2. Receiver PIN Diode

  3. Wavelength (SFP) 850/1300nm MM and 1300/1550 SM

  4. SM SFP Connectors LC

  5. Loss Budgets - 1300/1550nm

  6. Multimode @62.5/125µm 15dB

  7. Single Mode @9/125µm 20dB

  8. (NOTE: Contact factory for higher requirements)

LEDs

  1. PWR A, PWR B, Vcc, DFLT, ALM, SHR, MSTR Yes

  2. (NOTE: Different Expansion may have different LEDs)

System

  1. Bit Error Rate 1 in 1010 or Better

Alarm

  1. Dry Contact NO or NC (selectable)

Diagnostic Functions

  1. Traffic Statistics Yes

  2. Launch Power Yes

  3. Temperature Yes

Power

  1. Standard 12VDC

  2. Optional 24VDC, -48VDC or 115/230VAC (w/ external cube)

Operating Temperature

  1. Standard Temp -20°C to 70°C

  2. Extreme Temp (optional) -40°C to 80°C

Storage

  1. Storage -40°C to 90°C

  2. Humidity 95% non-condensing

Physical (Standalone Unit)

  1. Height(16.26 cm) 6.4"

  2. Width(5.84 cm) 2.3"

  3. Depth(13.21 cm) 5.2"

  4. Weight(544 gm) 1.2 lbs

Expansion Ordering Information

  1. TC3841-2DR 6 x 10/100Base-T

  2. TC3842-3DR 6 x SFP 100FX

  3. TC3847-1DR 4 x RS232/422/485

*SFP Transceiver not included

Download Datasheet

TC3840DR

JumboSwitch-DR DIN Rail Ethernet Switch
