The ECONECT Safebond® unit does not cause any metallurgical changes to the metal structure (ie Martensite) and is powered by a new revolutionary nano-battery with a longer lifespan than previous batteries.
The weight is only 9.8kg.
Technical Specification:
Voltage 36 V DC
Capacity: 25-30 SafeBond 1 or 50-60 Stick soldering (required optional braze gun) per charge
Weight (incl. Battery) 9.8kg / 21.6Lb
Dimensions:
Width 150 mm
Height 280 mm
Length 320 mm

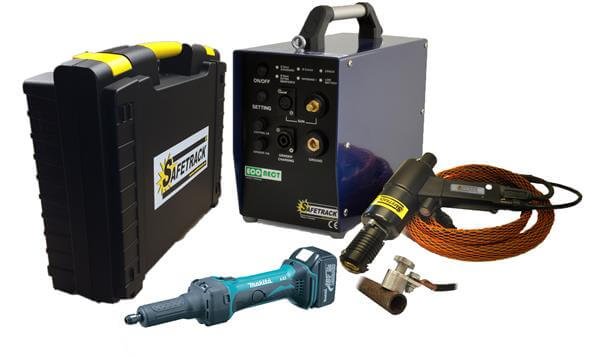

ECONECT SAFE 943670 is delivered with:
SB15 Pistol, automatic SAFE 91017
Electrode holder for SafeBond 1, SAFE SB390120
Ring holder for SafeBond 1, SAFE SB390150
Battery 1 pc required SAFE 80982
Grinding machine BGD800 Makita 593070
Grounding device
2.7m SAFE OnOff
Mag2 SAFE 9523
Battery charger (not included):
Charger 36V / 230V for ECONECT SAFE 8048
or
charger 110V SAFE 80481
Accessories:
Pin soldering gun (for pin solder) S15 Automatic SAFE 91015
Ground Clamp 2.7m SAFE 8071
pin holder 8-9.5 (A) SAFE 9211
pin holder M8 (B) SAFE 9213
pin holder M10 ( C) SAFE 9215 Pin
holder M12 (D) SAFE 9217 Ring
holder 8-9.5 SAFE 9202
Ring holder M8 / M10 / M12 SAFE 9204
Extension set for S4. 8-9.5 SAFE 9227
Extension set t.S4 M8 / M10 / M12 SAFE 9229
