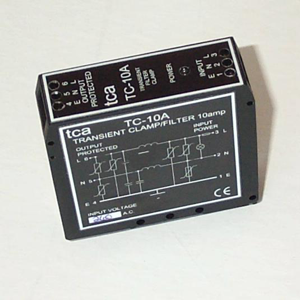

MODEL NO: TC-10A/240 SERIES FILTER 10 AMP 240VAC

The TC-10A is a high speed high energy multi stage transient clamp providing precision clamp protection for electrical/electronic equipment.

The TC-10A has a unique protection circuit that gives true protection in all three possible fault modes with an additional common mode filter that filters out the clamped waveform to reduce the rate of Voltage rise providing high level protection for sensitive electronic equipment.

The unique circuitry ensures that protection is guarantied in all three modes giving total protection from both common mode and differential mode fault conditions.

The TC-10A is internally fused and has an indication circuit showing healthy state.

The TC-10A has many applications in various fields of commercial and Industrial environments.

The main applications are in the protection of low mains power supplies to PLC and SCADA systems general control and interface equipment powered by 240V A.C. at 10amps or less.

The TC-10A will provide repeated protection in lightning intense and high power transient environments.

The multi strike capability of the TC-10A is reflected in the 5 year warranty given with the device when correctly installed.
